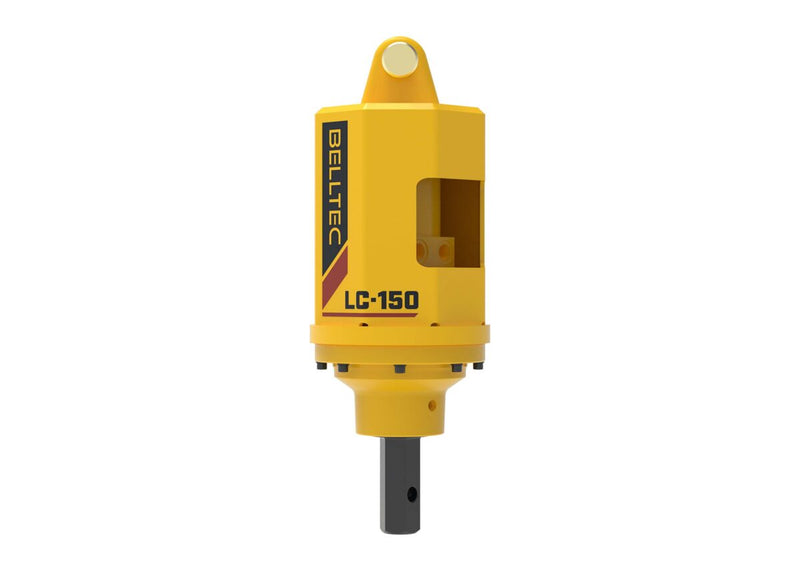

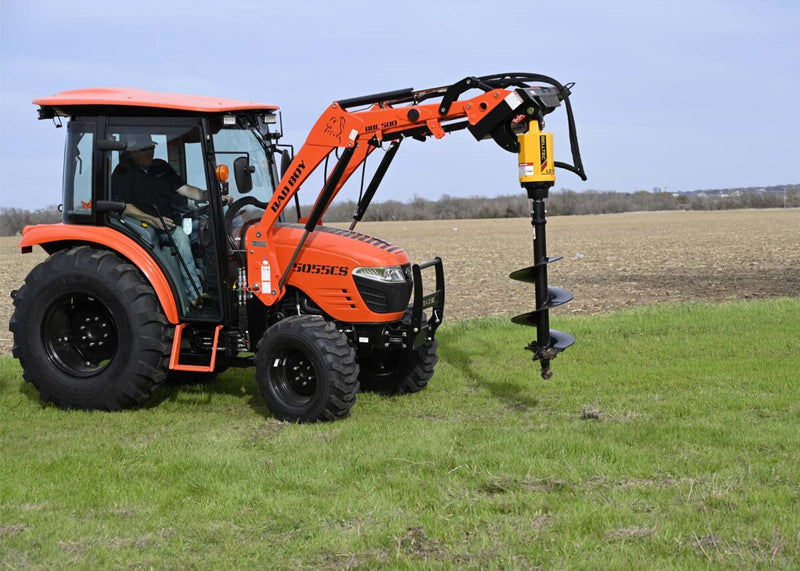

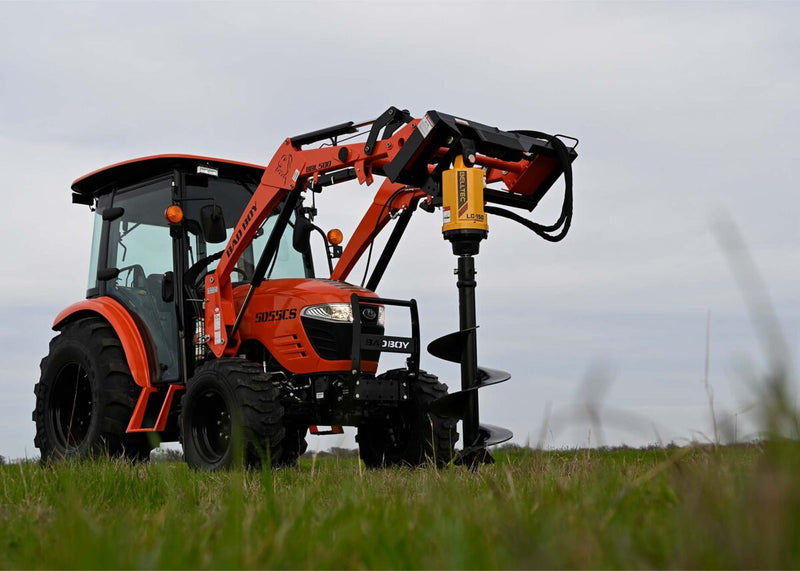

The Belltec LC-150 Compact Auger Drive delivers dependable drilling performance for compact tractors, mini skid steers, skid steers, and other smaller prime movers with lower auxiliary hydraulic flow. Its compact, lightweight design provides an excellent weight-to-power ratio while producing up to 1,764 ft-lbs of torque.
Choose the drive by itself for a custom installation, or select the complete kit for a ready-to-mount universal skid-steer setup. Both configurations use a common 2-inch hex output shaft, making the LC-150 compatible with a wide selection of Belltec and other industry-standard auger bits.
Key Features
- Designed for 6–15 GPM auxiliary hydraulic flow
- Up to 1,764 ft-lbs of torque at 3,500 PSI
- Maximum speed of 91 RPM at 15 GPM
- 2-inch hex output shaft
- Supports dirt and rock augers up to 18 inches in diameter
- Compact 150 lb drive unit
- 4-year limited Belltec warranty
Specifications
| Hydraulic Flow |
6–15 GPM |
| Continuous Pressure |
3,000 PSI |
| Intermittent Pressure |
3,500 PSI |
| Maximum Torque |
1,764 ft-lbs |
| Maximum Speed |
91 RPM at 15 GPM |
| Output Shaft |
2-inch hex |
| Maximum Dirt Auger |
18 inches |
| Maximum Rock Auger |
18 inches |
| Drive Weight |
150 lbs |
| Kit Weight |
277 lbs |
Purchase Options
Drive Only: LC-150 auger drive only. Mounting kit and hydraulic hoses are not included.

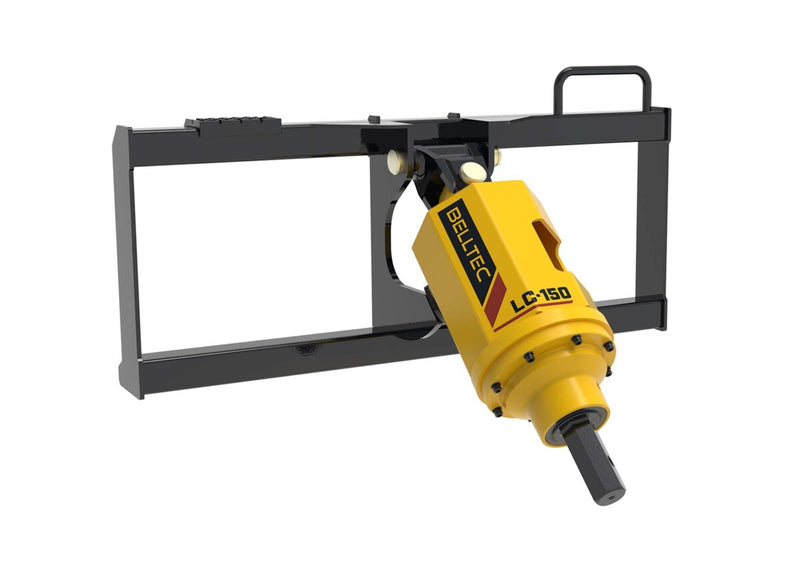

Complete Kit: LC-150 auger drive, QT100 universal skid-steer loader mount, and 1/2-inch x 96-inch hydraulic hose kit.
Auger bits are sold separately. Verify your machine's hydraulic flow, pressure, coupler requirements, and lift capacity before ordering.
