The Belltec HTLS-6K High Torque Auger Drive delivers exceptional low-flow drilling power for demanding agricultural, construction, utility, and foundation work. Producing up to 6,722 ft-lbs of torque from only 6–15 GPM, it gives smaller hydraulic machines serious drilling capability without requiring a case drain.
The HTLS Series is Belltec's highest-performing auger-drive lineup, engineered to combine maximum torque with a simple hydraulic connection. The HTLS-6K uses a rugged 2-inch hex output shaft and supports dirt and rock augers up to 36 inches in diameter.
Key Features
- High-torque professional auger drive
- Operates at 6–15 GPM
- Up to 6,722 ft-lbs of torque at 3,500 PSI
- Maximum speed of 24 RPM at 15 GPM
- No case drain required
- 2-inch hex output shaft
- Supports dirt and rock augers up to 36 inches
- 3-year limited Belltec warranty
Specifications
| Hydraulic Flow |
6–15 GPM |
| Continuous Pressure |
3,000 PSI |
| Intermittent Pressure |
3,500 PSI |
| Maximum Torque |
6,722 ft-lbs |
| Maximum Speed |
24 RPM at 15 GPM |
| Output Shaft |
2-inch hex |
| Maximum Dirt Auger |
36 inches |
| Maximum Rock Auger |
36 inches |
| Drive Weight |
232 lbs |
| Kit Weight |
359 lbs |
Purchase Options

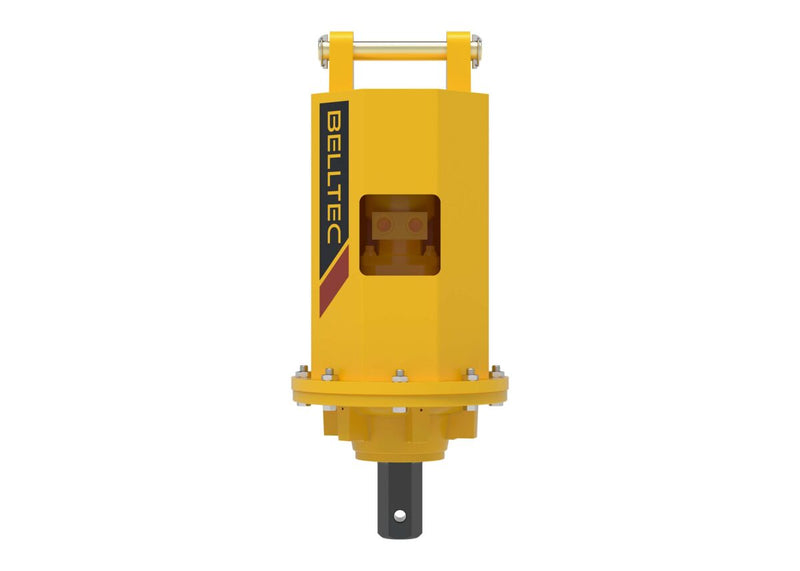

Drive Only: HTLS-6K auger drive only. Mounting kit and hydraulic hoses are not included.

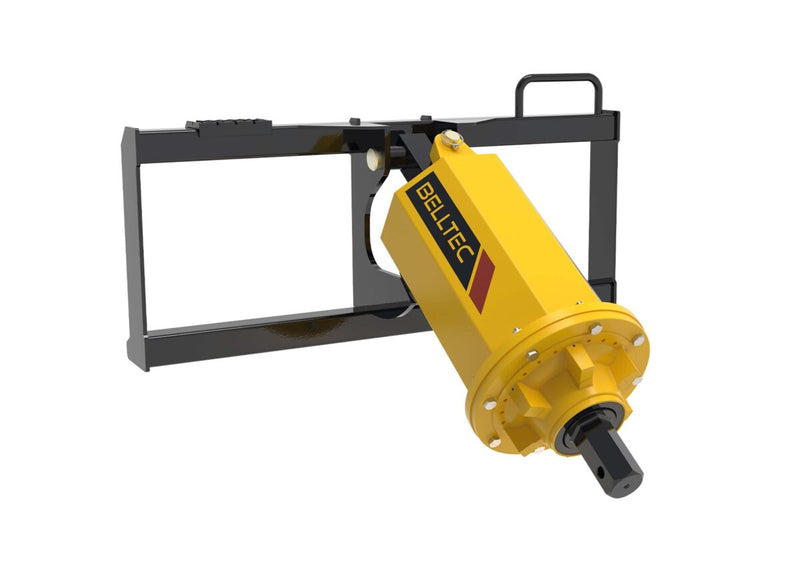

Complete Kit: HTLS-6K auger drive, QT100 universal skid-steer loader mount, and 1/2-inch x 96-inch hydraulic hose kit.
Auger bits are sold separately. Verify your machine's hydraulic flow, pressure, coupler requirements, and lift capacity before ordering.
